定制貴州煤礦雙層皮帶機選嵩陽煤機
定制貴州煤礦雙層皮帶機選嵩陽煤機
昨天上午接到貴州煤礦賀總的一個電話，“你好??！李總，前天我在網上看到你們廠生產煤礦用皮帶機，我們煤礦想定制兩臺雙層皮帶機，能去你們嵩陽煤機考察嗎？”“非常歡迎??！賀總，我們嵩陽煤機隨時歡迎您，到時候我親自到機場接您”。就這樣一通電話，第二天賀總就坐飛機來到我們大鄭州嵩陽煤機。到我們廠之后，賀總參觀了我們的皮帶機生產車間、機加工生產車間和倉儲物流車間。

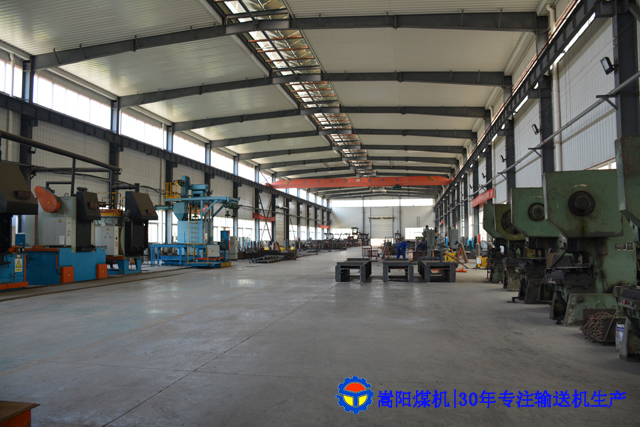

皮帶機生產加工車間
隨后賀總還參觀了我們的榮譽室，賀總又一次說“李總，我的這一趟沒白來啊，以前也去過很多皮帶機廠家，像你們這樣有實力的皮帶機廠家真的不多！”隨即簽下了兩臺帶寬1200mm、長度600米雙層皮帶機項目，皮帶機設備月底交工。

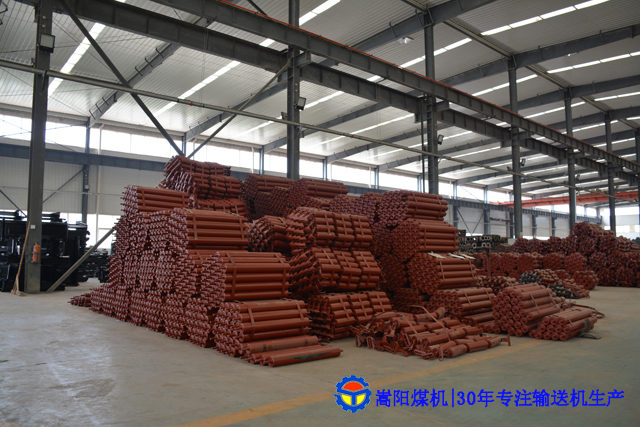

皮帶機倉儲物流車間
常用規格 / PRODUCT SPECIFICATIONS規格：標準輸送帶寬度為500mm、650mm、800mm、1000mm、1200mm、1400mm等，也可按客戶需求采用其它特殊規格。
技術參數 / TECHNICAL PARAMETERSDSJ可伸縮皮帶輸送機技術參數
| 型 號 | 輸送量(t/h) | 帶寬 | 帶速 | 輸送長度 | 滾筒直徑 | 托輥直徑 | 貯帶長度 | 機尾長度 | 搭接軌距 | 裝機功率 |
| DSJ65/20/2Χ30 | 200 | 650 | 1.63 | 600 | Φ450 | Φ89 | 50 | 12 | 900 | 2Χ30 |
| DSJ65/20/2Χ37 | 200 | 650 | 1.63 | 800 | Φ450 | Φ89 | 50 | 12 | 900 | 2Χ37 |
| DSJ65/10/40 | 100 | 650 | 2 | 600 | Φ500 | Φ89 | 100 | 12 | 900 | 40 |
| DSJ65/20/2Χ40 | 200 | 650 | 2 | 800 | Φ500 | Φ89 | 100 | 12 | 900 | 2Χ40 |
| DSJ65/20/2Χ55 | 200 | 650 | 2 | 1200 | Φ500 | Φ89 | 100 | 12 | 900 | 2Χ55 |
| DSJ80/30/2Χ30 | 300 | 800 | 1.63 | 500 | Φ450 | Φ89 | 50 | 12 | 1100 | 2Χ30 |
| DSJ80/40/40 | 400 | 800 | 2 | 250 | Φ500 | Φ89 | 100 | 12 | 1100 | 40 |
| DSJ80/40/2Χ40 | 400 | 800 | 2 | 500 | Φ500 | Φ89 | 100 | 12 | 1100 | 2Χ40 |
| DSJ80/40/2Χ40P | 400 | 800 | 2 | 500 | Φ500 | Φ89 | 100 | 12 | 1100 | 2Χ40 |
| DSJ80/40/2Χ55 | 400 | 800 | 2 | 700 | Φ500 | Φ89 | 100 | 12 | 1100 | 2Χ55 |
| DSJ80/50/2Χ75 | 500 | 800 | 2 | 800 | Φ630 | Φ89 | 50 | 12 | 1100 | 2Χ75 |
| DSJ80/40/2Χ90 | 400 | 800 | 2 | 1200 | Φ630 | Φ89 | 50 | 12 | 1100 | 2Χ90 |
| DSJ80/40/2Χ110 | 400 | 800 | 2 | 1400 | Φ630 | Φ89 | 100 | 15 | 1100 | 2Χ110 |
| DSJ100/63/2Χ75 | 630 | 1000 | 2 | 650 | Φ630 | Φ108 | 50 | 12 | 1362 | 2Χ75 |
| DSJ100/63/125 | 630 | 1000 | 2 | 500 | Φ630 | Φ108 | 100 | 15 | 1362 | 125 |
| DSJ100/80/2Χ125 | 800 | 1000 | 2 | 900 | Φ630 | Φ108 | 100 | 15 | 1362 | 2Χ125 |
| DSJ100/80/2Χ132 | 800 | 1000 | 3 | 900 | Φ1000 | Φ108 | 100 | 15 | 1362 | 2Χ132 |
| DSJ100/80/2Χ160 | 800 | 1000 | 3.15 | 1100 | Φ1000 | Φ133 | 100 | 15 | 1362 | 2Χ160 |
| DSJ100/80/2Χ200 | 800 | 1000 | 3.15 | 1300 | Φ1000 | Φ133 | 130 | 15 | 1362 | 2Χ200 |
| DSJ100/80/2Χ250 | 800 | 1000 | 3.15 | 1700 | Φ1000 | Φ133 | 130 | 15 | 1362 | 2Χ250 |
| DSJ100/80/2Χ315 | 800 | 1000 | 3.15 | 2100 | Φ1000 | Φ133 | 130 | 15 | 1362 | 2Χ315 |
| DSJ120/100/2Χ75 | 1000 | 1200 | 2 | 600 | Φ630 | Φ108 | 50 | 15 | 1562 | 2Χ75 |
| DSJ120/180/2Χ200 | 1800 | 1200 | 3.3 | 650 | Φ1080 | Φ133 | 130 | 15 | 1562 | 2Χ200 |
| DSJ120/200/3Χ250 | 2000 | 1200 | 3.3 | 1100 | Φ1080 | Φ133 | 130 | 15 | 1562 | 3Χ250 |
| DSJ120/150/2Χ315 | 1500 | 1200 | 3.3 | 1200 | Φ1080 | Φ133 | 130 | 15 | 1562 | 2Χ315 |
DTS繩架吊掛、DTL固定皮帶輸送機技術參數
| 型 號 | 輸送量 (t/h) | 帶寬 | 帶速 | 輸送長度 | 傾角 | 滾筒直徑 | 托輥直徑 | 裝機功率 |
| DTS65/20/22 | 200 | 650 | 1.63 | 500 | ±5° | Φ450 | Φ89 | 22 |
| DTS80/40/2Χ30 | 400 | 800 | 1.63 | 500 | ±5° | Φ450 | Φ89 | 2Χ30 |
| DTL50/10/30 | 100 | 650 | 1.63 | 400 | ±5° | Φ450 | Φ89 | 30 |
| DTL65/20/2Χ30 | 200 | 650 | 1.63 | 400 | ±5° | Φ450 | Φ89 | 2Χ30 |
| DTL65/20/2Χ37 | 200 | 650 | 1.63 | 500 | ±5° | Φ450 | Φ89 | 2Χ37 |
| DTL65/10/2Χ45 | 100 | 650 | 1.63 | 1000 | ±5° | Φ500 | Φ89 | 2Χ45 |
| DTL65/20/2Χ40 | 200 | 650 | 2 | 600 | ±5° | Φ500 | Φ89 | 2Χ40 |
| DTL80/30/2Χ30 | 300 | 800 | 1.63 | 500 | ±5° | Φ450 | Φ89 | 2Χ30 |
| DTL80/40/2Χ37 | 400 | 800 | 1.63 | 600 | ±5° | Φ450 | Φ89 | 2Χ37 |
| DTL80/40/2Χ45 | 400 | 800 | 1.63 | 600 | ±5° | Φ500 | Φ89 | 2Χ45 |
| DTL80/40/2Χ40 | 400 | 800 | 2 | 500 | ±5° | Φ500 | Φ89 | 2Χ40 |
| DTL80/40/2Χ55 | 400 | 800 | 2 | 700 | ±5° | Φ500 | Φ89 | 2Χ55 |
| DTL80/40/2Χ75 | 400 | 800 | 2 | 1000 | 0-2° | Φ630 | Φ89 | 2Χ75 |
| DTL80/40/2Χ90 | 400 | 800 | 2 | 1200 | 0-2° | Φ630 | Φ89 | 2Χ90 |
| DTL80/40/2Χ110 | 450 | 800 | 2 | 1300 | 0-2° | Φ630 | Φ89 | 2Χ110 |
| DTL100/50/2Χ40 | 500 | 1000 | 2 | 300 | ±5° | Φ500 | Φ108 | 2Χ40 |
| DTL100/50/2Χ55 | 500 | 1000 | 2 | 300 | ±5° | Φ500 | Φ108 | 2Χ55 |
| DTL100/63/2Χ75 | 630 | 1000 | 2 | 700 | 0-2° | Φ630 | Φ108 | 2Χ75 |
| DTL100/50/2Χ90 | 500 | 1000 | 2 | 1000 | 0-5° | Φ630 | Φ108 | 2Χ90 |
| DTL100/65/2Χ110 | 650 | 1000 | 2 | 1000 | 0-3° | Φ630 | Φ108 | 2Χ110 |
| DTL100/60/355S | 600 | 1000 | 2.5 | 400 | 15° | Φ1000 | Φ108 | 355S |
| DTL100/75/160S | 750 | 1000 | 3 | 150 | 15° | Φ830 | Φ108 | 160S |
| DTL100/90/185S | 900 | 1000 | 3 | 150 | 15° | Φ830 | Φ108 | 185S |
| DTL100/40/2Χ220S | 400 | 1000 | 1.9 | 1000 | 0-14° | Φ830 | Φ133 | 2Χ220 |
| DTL100/75/2Χ220 | 750 | 1000 | 2.5 | 1100 | ±2° | Φ830 | Φ108 | 2Χ220 |
| DTL100/75/2Χ400 | 750 | 1000 | 2.5 | 2000 | 2-3° | Φ1000 | Φ133 | 2Χ400 |
| DTL120/80/2Χ90 | 800 | 1200 | 2.5 | 600 | 0-1° | Φ800 | Φ133 | 2Χ90 |
| DTL120/120/2Χ132 | 1200 | 1200 | 2.5 | 600 | 1-0° | Φ830 | Φ133 | 2Χ132 |
| DTL120/120/2Χ200 | 1200 | 1200 | 3.15 | 1100 | ±3° | Φ1030 | Φ133 | 2Χ200 |
| DTL120/150/2Χ315 | 1500 | 1200 | 3.15 | 1000 | ±3° | Φ1030 | Φ133 | 2Χ315 |
| DTL120/120/2Χ280S | 1200 | 1200 | 3.15 | 600 | 0-14° | Φ1280 | Φ133 | 2Χ280 |
| DTL120/150/2Χ630S | 1500 | 1200 | 3.15 | 1000 | 14-15° | Φ1280 | Φ133 | 2Χ630 |
| DTL120/120/2Χ400 | 1200 | 1200 | 3.15 | 1500 | 2-3° | Φ1280 | Φ133 | 2Χ400 |
| DTL120/120/2Χ500 | 1200 | 1200 | 3.15 | 2000 | 2-3° | Φ1280 | Φ133 | 3Χ500 |
| DTL120/200/3Χ630 | 2000 | 1200 | 3.15 | 1200 | 2-3° | Φ1280 | Φ133 | 3Χ630 |
| DTL140/200/2Χ315 | 2000 | 1400 | 3.15 | 1100 | ±3° | Φ1030 | Φ159 | 2Χ315 |
| DTL140/250/3Χ400S | 2500 | 1400 | 3.15 | 600 | 14-15° | Φ1280 | Φ159 | 3Χ400 |
| DTL140/160/2Χ355 | 1600 | 1400 | 3.15 | 800 | 2-3° | Φ1280 | Φ159 | 2Χ355 |
| DTL140/200/2Χ500 | 2000 | 1400 | 3.15 | 900 | 2-3° | Φ1280 | Φ159 | 2Χ500 |
DTC大傾角上、下運皮帶輸送機技術參數
| 型 號 | 輸送量 (t/h) | 帶寬 | 帶速 | 輸送長度 | 傾角 | 滾筒直徑 | 托輥直徑 | 裝機功率 |
| DTC80/15/2Χ75S | 150 | 800 | 2 | 400 | 25° | Φ630 | Φ89 | 2Χ75 |
| DTC80/15/2Χ90S | 150 | 800 | 2 | 600 | 25° | Φ630 | Φ89 | 2Χ75 |
| DTC80/20/2Χ110S | 200 | 800 | 2.5 | 500 | 25° | Φ830 | Φ89 | 2Χ110 |
| DTC80/20/160S | 200 | 800 | 2.2 | 400 | 25° | Φ1000 | Φ108 | 160 |
| DTC80/30/2Χ220S | 300 | 800 | 2.5 | 500 | 20° | Φ1250 | Φ108 | 2Χ220 |
| DTC80/20/280S | 200 | 800 | 2 | 600 | 25° | Φ1000 | Φ108 | 280 |
| DTC80/20/315S | 200 | 800 | 2 | 700 | 25° | Φ1000 | Φ108 | 315 |
| DTC80/30/2Χ400S | 300 | 800 | 2.5 | 1600 | 0-16° | Φ1280 | Φ108 | 2Χ400 |
| DTC100/30/2Χ185S | 300 | 1000 | 2.2 | 600 | 25° | Φ1000 | Φ108 | 2Χ185 |
| DTC100/25/250S | 250 | 1000 | 2 | 400 | 25° | Φ1000 | Φ108 | 250 |
| DTC100/40/2Χ250S | 400 | 1000 | 2 | 700 | 20° | Φ1000 | Φ108 | 2Χ250 |
| DTC100/80/2Χ280S | 800 | 1000 | 3 | 400 | 20° | Φ1250 | Φ133 | 2Χ280 |
| DTC100/30/2Χ315S | 300 | 1000 | 2 | 400 | 20° | Φ1030 | Φ108 | 2Χ315 |
| DTC100/30/2Χ450S | 300 | 1000 | 2.5 | 2000 | 0-16° | Φ1280 | Φ133 | 2Χ450 |
| DTC120/75/2Χ315S | 800 | 1200 | 3 | 500 | 20° | Φ1250 | Φ133 | 2Χ315 |
| DTC120/75/2Χ500S | 750 | 1200 | 2.5 | 1000 | 0-16° | Φ1280 | Φ133 | 2Χ500 |
| DTC80/30/132X | 300 | 800 | 2 | 300 | 0-(-25°) | Φ1000 | Φ108 | 132 |
| DTC80/25/200X | 250 | 800 | 2 | 500 | 0-(-25°) | Φ1000 | Φ108 | 200 |
| DTC80/25/2Χ75X | 250 | 800 | 2 | 400 | 0-(-25°) | Φ1000 | Φ108 | 2Χ75 |
| DTC100/55/2Χ110X | 550 | 1000 | 2 | 400 | 0-(-25°) | Φ1000 | Φ108 | 2Χ110 |
注：可根據用戶要求設計制作皮帶輸送機嵩陽煤機，30年專注礦用輸送設備，2600家煤企合作伙伴，主打產品刮板輸送機、帶式輸送機、順槽刮板轉載機及配件，產品銷往云南、貴州、四川、重慶、黑龍江、吉林、遼寧、山西、陜西、內蒙古等煤礦企業，更多內容請請訪問嵩陽煤機官方網站http://www.y8895.com/
歡迎您到嵩陽煤機考察指導，我們會到機場或者火車站專車接送。聯系人：李經理 免費咨詢熱線：400-6866-396/17303715996
